Pharmacy Cold Chain Maintenance: USP 800 Compliance Through CMMS

Pharmacy cold chains fail silently — a refrigerator logging 8.4°C instead of 7.8°C rarely triggers a manual alarm, but under USP 800 and USP 659 standards, every uncorrected excursion is a documented compliance failure. For hazardous drug facilities, the stakes are higher: temperature deviation in a HD compounding environment triggers not just product loss but a full USP 800 deviation report, pharmacist review, and potential regulatory citation. Start a free trial with Oxmaint CMMS to deploy pharmacy cold chain PM schedules, automated alarm logs, and USP 800 deviation documentation from day one — or book a 30-minute demo with our healthcare facility team.

The Compliance Problem

Why 50% of Pharmacies Fail Cold Chain Audits

Half of community pharmacies experience at least one temperature excursion per year — yet most lack a structured system to document, trend, and respond to these events. USP 800 demands written SOPs, equipment qualification records, and deviation logs that span the full lifecycle of every cold-storage unit in the facility. Without a CMMS to enforce inspection intervals and capture condition data at each PM, audit readiness becomes a manual scramble every time a state board inspector walks through the door.

50%

of pharmacies report a cold chain temperature excursion within 12 months

43%

of specialty medicines approved since 2018 require cold chain storage

$65B+

global pharma cold chain market value in 2025, projected to double by 2034

USP 800 Requirements

What USP 800 Requires From Your Maintenance Program

USP 800 is not only a handling standard — it mandates facility design, equipment qualification, and documented maintenance for every system that comes into contact with hazardous drug compounding environments. The table below maps USP 800 requirements to the CMMS work orders and data fields that satisfy each requirement at audit.

USP 800 Requirement	Equipment Affected	CMMS Work Order Type	Data to Capture	Audit Risk if Missed
Temperature monitoring with continuous logging	Refrigerators, freezers, pass-throughs	Daily automated alarm review	Min/max temps, excursion timestamps, response action	Critical — immediate citation
Equipment qualification (IQ/OQ/PQ)	All cold storage units	Initial qualification PM at installation	Temperature mapping results, pass/fail, date, technician	Critical — equipment cannot be used
Periodic requalification after repair	Any unit post-repair or relocation	Condition-triggered requalification WO	Repair description, requalification results, pharmacist sign-off	Major — product quarantine risk
Deviation documentation for excursions	All HD storage areas	Corrective action WO linked to alarm event	Excursion duration, temp reached, product affected, disposition	Critical — regulatory violation
Annual temperature mapping	Refrigerators, ante-rooms, ISO suites	Calendar-triggered annual PM	Probe positions, zone readings, hot/cold spot identification	Major — qualification gap
Alarm system testing	Monitoring sensors and alarm units	Semi-annual PM with test record	Alarm set points, response time, audible/visual confirmation	Moderate — documentation gap

Get Audit-Ready

Deploy USP 800 PM Templates in Oxmaint

Oxmaint includes pre-built pharmacy cold chain work orders with USP 800 data fields, excursion deviation logs, and qualification record templates — ready to assign to your refrigerators and freezers from day one.

Start Free Trial Book a Demo

Cold Chain Components

Four Pharmacy Systems That Require CMMS-Tracked Maintenance

Pharmacy-Grade Refrigerators and Freezers

PM IntervalEvery 6 months + after any repair

Key Failure ModesCompressor wear, door gasket degradation, condenser coil fouling

CMMS Data PointsTemperature calibration, door seal test result, compressor amperage, filter clean date

Risk If MissedProduct loss and USP 800 deviation report

Continuous Temperature Monitoring Sensors

PM IntervalAnnual calibration; semi-annual alarm test

Key Failure ModesSensor drift, battery failure, communication loss, set-point drift

CMMS Data PointsCalibration certificate date, as-found vs as-left readings, alarm test pass/fail

Risk If MissedSilent excursion — undetected product compromise

Pass-Through Chambers (HD Compounding)

PM IntervalEvery 6 months; requalify after any repair

Key Failure ModesInterlock failure, pressure differential loss, temperature zone bleed

CMMS Data PointsInterlock test result, differential pressure reading, zone temperature log

Risk If MissedHD contamination risk — USP 800 major deviation

Backup Power Systems (UPS / Generator)

PM IntervalAnnual load test; quarterly battery inspection

Key Failure ModesBattery capacity loss, transfer switch failure, fuel system degradation

CMMS Data PointsLoad test result, battery voltage readings, transfer time (seconds)

Risk If MissedPower outage leads to full cold chain failure

Temperature Ranges

USP Temperature Categories Every Pharmacy Must Track

2 – 8 °C

Controlled Cold Temperature (CCT)

Vaccines, biologics, insulin, compounded sterile preparations. USP requires continuous monitoring with alarm response within the MKT window defined in USP 1079.2.

-25 to -10 °C

Freezer Storage

mRNA vaccines, certain gene therapy products, plasma. Requires validated freezer qualification and temperature mapping per USP 659 and 1079.

15 – 25 °C

Controlled Room Temperature (CRT)

Most oral medications and HD hazardous drug storage areas. Revised USP 659 (2025) updated this range from 20–25 °C to align with international pharmacopeias.

Below -60 °C

Deep Freeze / Ultra-Low

Cell and gene therapies. Requires specialized ULT freezers with redundant monitoring and separate qualification protocols beyond standard USP 800 scope.

Expert Perspective

What Pharmacy Compliance Officers Say

The most common gap we find during USP 800 readiness reviews is not the monitoring hardware — it is the absence of documented evidence that alarm responses were reviewed by a pharmacist within the required timeframe. CMMS work orders that link alarm events to corrective actions solve this instantly.

Director of Pharmacy Compliance

Regional Health System, 12-facility network

After switching to operating-hour and calendar-triggered PM schedules in our CMMS, our refrigerator failure rate during compounding shifts dropped to near zero. The key was capturing calibration as-found data — we identified three sensors drifting out of spec before they caused a real excursion.

Sterile Compounding Pharmacist

503B Outsourcing Facility, Mid-Atlantic

Frequently Asked Questions

Pharmacy Cold Chain Maintenance and USP 800: Common Questions

Does USP 800 require us to requalify a refrigerator every time it is repaired?

Yes — USP 800 requires requalification of any cold storage unit after a repair that could affect temperature performance, including compressor replacement, relocation, or gasket repair. The requalification does not need to be a full IQ/OQ/PQ cycle if the unit has a current baseline; however, a documented temperature mapping exercise and pharmacist sign-off are required before the unit returns to service. Oxmaint CMMS supports condition-triggered requalification work orders that fire automatically when a corrective maintenance record is closed for designated critical equipment. This ensures no repair closes without a requalification step, and the full audit trail is preserved in the asset history.

How often should temperature monitoring sensors be calibrated under USP 800?

USP 800 does not specify a universal calibration interval, but most pharmacy accreditation bodies — including URAC and ACHC — require sensor calibration at least annually against a NIST-traceable reference standard. After calibration, the as-found and as-left readings must be documented, and any sensor found outside acceptable tolerance must be replaced before the unit returns to monitoring duty. Talk to our team about setting up annual calibration PM triggers with automatic certificate attachment fields in Oxmaint so your calibration records are always accessible at audit without any manual filing.

What is the correct way to document a temperature excursion under USP 800?

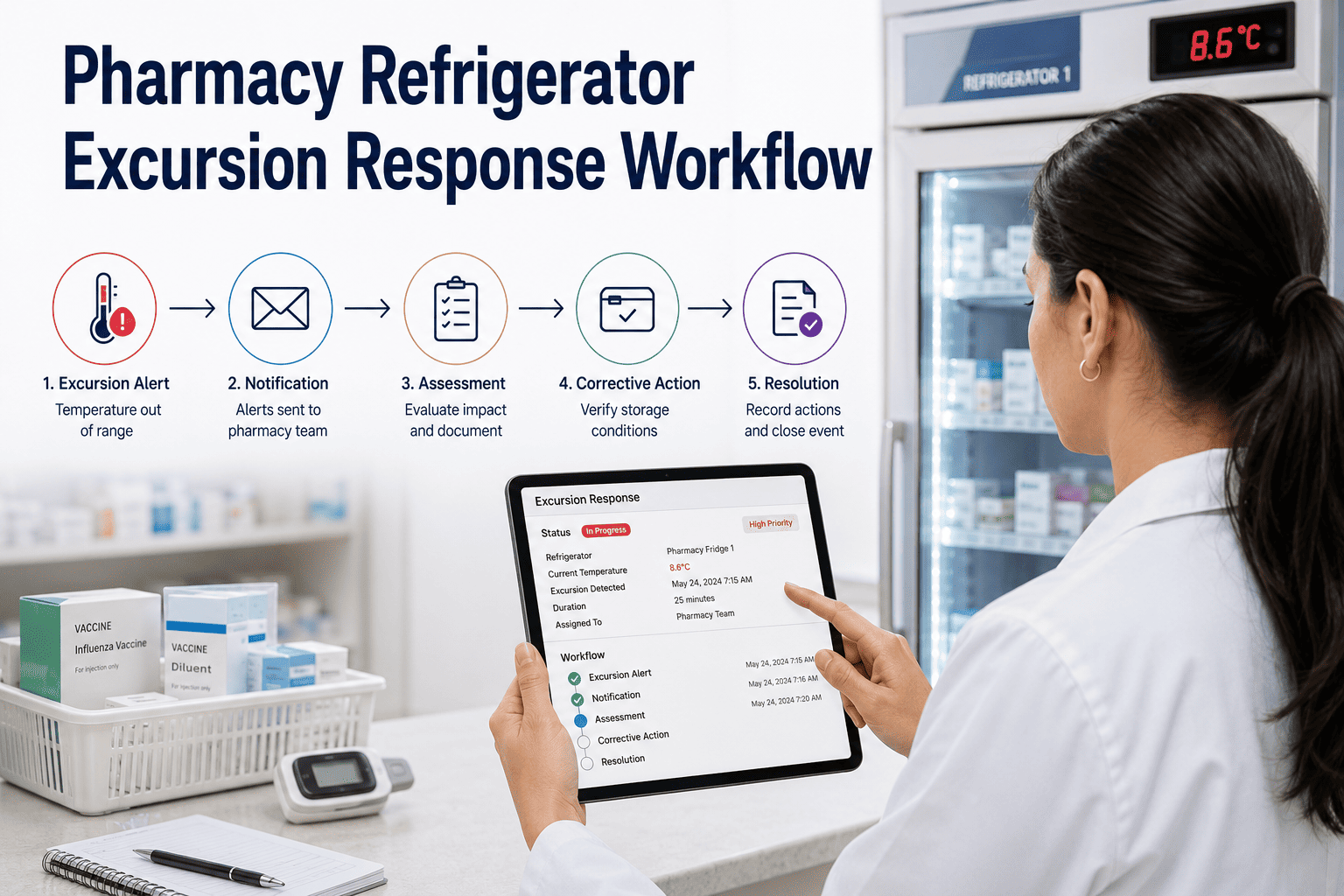

A USP 800-compliant excursion record must include: the start and end time of the excursion, the minimum and maximum temperature reached, the products affected and their quantities, the pharmacist assessment of whether products remain safe for use, the corrective action taken to restore proper temperature, and a root cause note. The record must be signed by a designated pharmacist. Oxmaint excursion work order templates pre-populate these fields from the linked alarm event, so technicians cannot close a deviation record without completing every required data point. This removes the most common audit gap — incomplete excursion documentation.

Can CMMS handle both calendar and condition-based triggers for pharmacy refrigerators?

Yes — and using both trigger types for the same asset is the correct approach for pharmacy cold storage. Calendar triggers handle scheduled PMs like annual temperature mapping and semi-annual alarm tests, while condition triggers fire requalification work orders whenever a repair record is closed on a monitored unit. Running both trigger types in parallel within the same asset hierarchy ensures neither scheduled maintenance nor event-driven requalification is missed between cycles. Book a demo to see how Oxmaint manages multi-trigger PM schedules for pharmacy equipment with a single asset record that captures the full maintenance, alarm, and qualification history in one place.
